High Temperature Vacuum Oven for Environmental Test Chamber | Precision Thermal Vacuum Drying Equipment

High Temperature Vacuum Oven for Environmental Test Chamber | Precision Thermal Vacuum Drying Equipment

Markenbezeichnung: Hejin
Modellnummer: HJ-EMTC-018
MOQ: 1 Satz
Preis: Negotiatable
Zahlungsbedingungen: L/C, T/T
Versorgungsfähigkeit: 10 Sätze pro Monat
Einzelheiten
Herkunftsort:
China
Zertifizierung:
Third party calibration certificate(cost additional)
Temperaturregler:
PID-Digitalanzeigeinstrument
Sensorkabel:
K-Typ
Ausgabe:
3 bis 32 V
Temperaturbereich:
+30~200℃
Kontrollgenauigkeit:
±0,5℃
Genauigkeit anzeigen:
0,1℃
Stromversorgung:
220V/50HZ
Leistung:
5KW
Verpackung Informationen:
Sperrholz
Hervorheben:

high temperature vacuum oven

,

precision thermal drying equipment

,

environmental test chamber with warranty

Beschreibung des Produkts

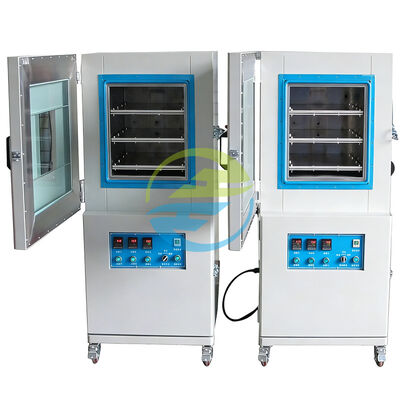

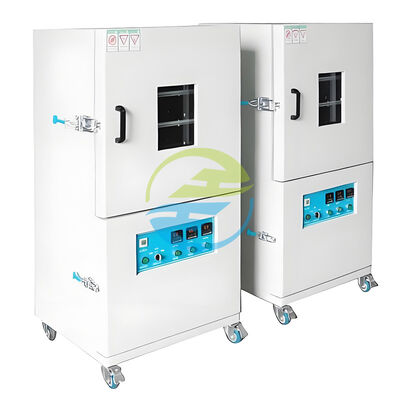

High Temperature Vacuum Oven for Environmental Test Chamber
Precision Thermal Vacuum Drying Equipment designed for vacuum drying, heat treatment, and thermal stability testing under high temperature conditions. This system operates under reduced pressure, allowing effective heat penetration while minimizing oxidation, contamination, and structural damage.
Product Features
  • Stable Vacuum Environment: Maintains consistent vacuum levels to accelerate moisture evaporation and material degassing, improving drying efficiency and product quality
  • Uniform High Temperature Heating: Advanced heating elements and optimized airflow design ensure even temperature distribution throughout the chamber
  • Precision Temperature Control: Digital PID temperature controller provides highly accurate control and stable heating performance
  • High Strength Stainless Steel Chamber: Corrosion-resistant stainless steel interior ensures long-term durability and contamination-free testing
  • Excellent Sealing System: Reinforced sealing structure prevents vacuum leakage and guarantees stable operation during extended test cycles
International Reference Standards
  • IEC 60068-2-2 Environmental testing – Dry heat test method
  • IEC 60068-2-14 Environmental testing – Temperature change testing procedures
  • ISO 16750-4 Road vehicles – Environmental conditions and testing for electrical and electronic equipment – Climatic loads
  • ASTM D4332 Conditioning containers and packaging components for testing
Technical Parameters
Item Parameters
Internal Dimensions 400 (W) x 400 (D) x 400 (H) mm (Single Box Type)
External Dimensions 700 (W) x 630 (D) x 1320 (H) mm + 110mm wheel height, subject to actual product
Box Structure One-piece structure
Viewing Window Specifications W200H250mm
Inner Box Material 304# Stainless Steel Plate, Thickness 3.0mm
Outer Material Cold Rolled Steel Plate, Thickness 1.0mm, Powder Coating (Off-White)
Insulation Material High-Temperature Resistant Rock Wool, Excellent Insulation Performance
Casters Equipped with braked swivel casters for easy movement
For additional technical parameters, please consult our sales representative
Applications
The High Temperature Vacuum Oven is widely used in industries where precise thermal processing and moisture removal are critical, including electronics manufacturing, automotive parts testing, and semiconductor research.
Testing Objects
  • Electronic components
  • Lithium battery materials
  • Automotive parts
  • Semiconductor wafers
  • Polymer materials
Frequently Asked Questions
  • What is the advantage of a vacuum oven compared with a normal drying oven?
    A vacuum oven lowers the boiling point of liquids, allowing materials to dry faster and at lower temperatures while preventing oxidation and contamination.
  • Can the temperature range be customized?
    Yes. HeJin supports customized temperature ranges depending on testing requirements.
  • What industries commonly use this equipment?
    It is widely used in electronics manufacturing, lithium battery production, automotive parts testing, semiconductor research, and laboratories.
  • Is the chamber size customizable?
    Yes, chamber volume and structure can be customized based on sample size and testing conditions.
  • Does the equipment include a vacuum pump?
    The vacuum oven includes a vacuum interface. Vacuum pumps can be configured according to user requirements.
